Building Kubernetes Cluster (v1.30) with kubeadm

Requirements

  • 4 systems with at least 2GB of RAM
  • 4 systems, each with at least 2 CPU cores
  • All cluster nodes should have static IPv4 address assigned. If you're using DHCP, make sure DHCP always assigns the same IP to each node (DHCP binding). IPv4 addresses can be either from private address space (RFC 1918) or public address space.
  • Each system should have unique hostname resolvable via DNS or /etc/hosts
  • Each system should have unique MAC address
  • Each system must have unique product_uuid (/sys/devices/virtual/dmi/id/product_uuid)
  • Disable swap space on all nodes !!!
  • Operating system: Ubuntu Server 22.04 LTS

Facts

Node hostname Node IP address Node Role Notes
k8s-master1.internal.lab 192.168.40.40 Master Node Ubuntu 22.04 LTS
k8s-worker1.internal.lab 192.168.40.43 Worker Node Ubuntu 22.04 LTS
k8s-worker2.internal.lab 192.168.40.44 Worker Node Ubuntu 22.04 LTS
k8s-worker3.internal.lab 192.168.40.45 Worker Node Ubuntu 22.04 LTS

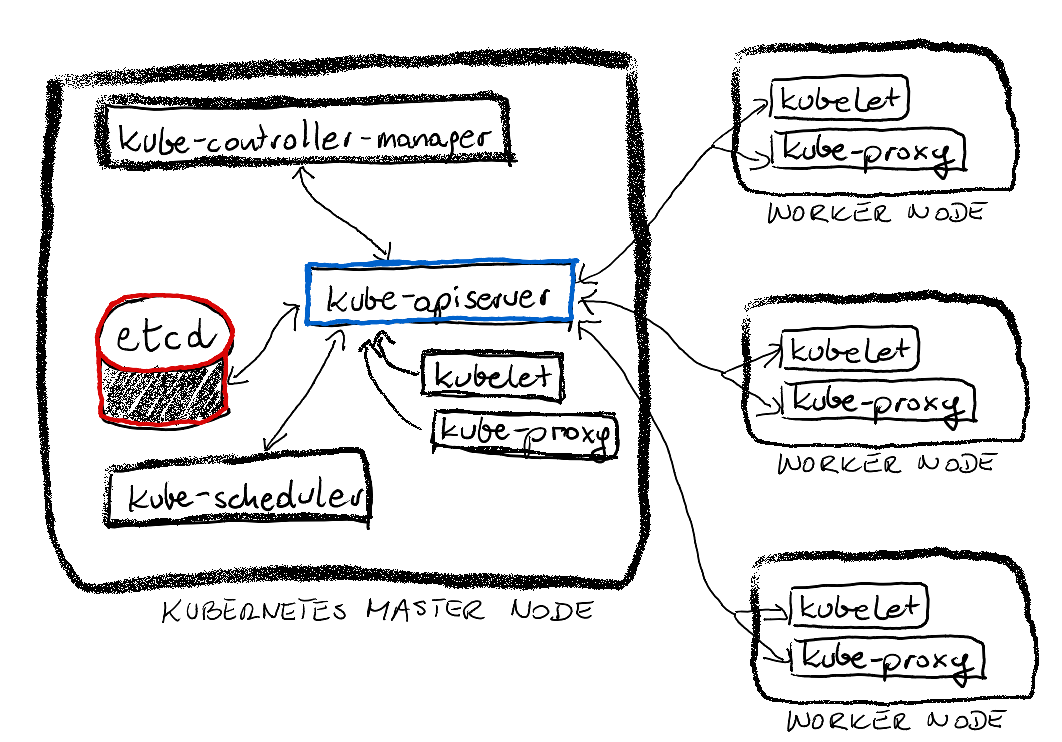

Kubernetes Cluster Architecture


Section 1. Configure containerd runtime

All below steps in this section must be performed on master node and worker nodes with user root privileges.

Ensure overlay and br_netfilter kernel modules are loaded during system startup.

echo overlay > /etc/modules-load.d/containerd.conf
echo br_netfilter > /etc/modules-load.d/containerd.conf

Load the above modules manually.

modprobe -v br_netfilter
modprobe -v overlay

Enable routing on the system.

echo "net.bridge.bridge-nf-call-iptables = 1" > /etc/sysctl.d/99-kubernetes.conf
echo "net.bridge.bridge-nf-call-ip6tables = 1" >> /etc/sysctl.d/99-kubernetes.conf
echo "net.ipv4.ip_forward = 1" >> /etc/sysctl.d/99-kubernetes.conf

Apply sysctl settings.

sysctl --system

Install containerd.

apt update
apt install -y containerd

Generate configuration for containerd.

mkdir /etc/containerd
containerd config default > /etc/containerd/config.toml
sed -i  's@SystemdCgroup = false@SystemdCgroup = true@' /etc/containerd/config.toml
systemctl restart containerd

Section 2: Connect system to Kubernetes APT/DNF repository

All below steps in this section must be performed on master node and worker nodes with user root privileges.

Connect Ubuntu system to Kubernetes APT repository.

apt update
apt install -y apt-transport-https ca-certificates curl gpg
mkdir -p -m 755 /etc/apt/keyrings
curl -fsSL https://pkgs.k8s.io/core:/stable:/v1.30/deb/Release.key | sudo gpg --dearmor -o /etc/apt/keyrings/kubernetes-apt-keyring.gpg
echo "deb [signed-by=/etc/apt/keyrings/kubernetes-apt-keyring.gpg] https://pkgs.k8s.io/core:/stable:/v1.30/deb/ /" > /etc/apt/sources.list.d/kubernetes.list

Install Kubernetes packages.

apt update
apt install -y kubelet kubeadm kubectl

Prevent Kubernetes packages from being accidentally upgraded or removed.

apt-mark hold kubelet kubeadm kubectl

Section 3: Configure crictl

crictl tool provides functionality similar to Docker CLI, but is specifically designed to interact with CRI-compliant (CRI= Container Runtime Interface) runtimes.

crictl completion bash > /etc/bash_completion.d/crictl
crictl config --set runtime-endpoint=unix:///run/containerd/containerd.sock \
   --set image-endpoint=unix:///run/containerd/containerd.sock

Setting for crictl command are saved in /etc/crictl.yaml file.

Section 4: Initialize Kubernetes Cluster with kubeadm

All below steps in this section must be performed on master node.

Configure tab completion for kubeadm utility.

kubeadm completion bash > /etc/bash_completion.d/kubeadm
kubectl completion bash > /etc/bash_completion.d/kubectl

Log out, and log back in. This ensures that tab-completion is available for kubeadm and kubectl utilities.

As user root, run the following command to provision K8s cluster.

kubeadm init --pod-network-cidr=10.244.0.0/16

At the end of this command, there will be some important information printed on a terminal. Note it down.

As regular user (or user root), configure Kubeconfig for kubectl utility. You can copy $HOME/.kube/config file to another machine in order to manage cluster from another client system.

mkdir -p $HOME/.kube
sudo cp /etc/kubernetes/admin.conf $HOME/.kube/config
sudo chown $(id -u):$(id -g) $HOME/.kube/config


Install network add-on (flannel) to complete provisioning Kubernetes cluster. Perform this step only on the master node.

kubectl apply -f https://github.com/flannel-io/flannel/releases/latest/download/kube-flannel.yml

Wait few moments and allow some time for everything to start.

Section 5: Join Worker Nodes

Perform all steps from sections 1, 2, and 3, on all worker nodes. I wrote simple bash script with all the instructions.

  • Save the script on each node as /root/prep-k8s-node.sh file.
  • Make the script executable and run the script as user root.

prep-k8s-node.sh

Use previously saved kubeadm join command to join worker node to the cluster. Run kubeadm command as user root.

Section 6: Verify deployment

Display cluster nodes

kubectl get nodes
NAME                       STATUS   ROLES           AGE   VERSION
k8s-master1.internal.lab   Ready    control-plane   17m   v1.30.2
k8s-worker1.internal.lab   Ready    <none>          13m   v1.30.2
k8s-worker2.internal.lab   Ready    <none>          11m   v1.30.2
k8s-worker3.internal.lab   Ready    <none>          11m   v1.30.2

Display pods from all namespaces

kubectl get pods --all-namespaces
NAMESPACE      NAME                                               READY   STATUS    RESTARTS        AGE
kube-flannel   kube-flannel-ds-npf5s                              1/1     Running   1 (8m2s ago)    16m
kube-flannel   kube-flannel-ds-qq448                              1/1     Running   1 (7m59s ago)   12m
kube-flannel   kube-flannel-ds-tcsql                              1/1     Running   1 (8m2s ago)    12m
kube-flannel   kube-flannel-ds-z8z9g                              1/1     Running   1 (7m57s ago)   14m
kube-system    coredns-7db6d8ff4d-9tw5b                           1/1     Running   1 (8m2s ago)    17m
kube-system    coredns-7db6d8ff4d-xqj9t                           1/1     Running   1 (8m2s ago)    17m
kube-system    etcd-k8s-master1.internal.lab                      1/1     Running   1 (8m2s ago)    17m
kube-system    kube-apiserver-k8s-master1.internal.lab            1/1     Running   1 (8m2s ago)    17m
kube-system    kube-controller-manager-k8s-master1.internal.lab   1/1     Running   1 (8m2s ago)    17m
kube-system    kube-proxy-228zq                                   1/1     Running   1 (7m59s ago)   12m
kube-system    kube-proxy-2sbqm                                   1/1     Running   1 (8m2s ago)    12m
kube-system    kube-proxy-7mrpw                                   1/1     Running   1 (8m2s ago)    17m
kube-system    kube-proxy-xcmfw                                   1/1     Running   1 (7m57s ago)   14m
kube-system    kube-scheduler-k8s-master1.internal.lab            1/1     Running   1 (8m2s ago)    17m

Display deployments from all namespaces

kubectl get deployments --all-namespaces
NAMESPACE     NAME      READY   UP-TO-DATE   AVAILABLE   AGE
kube-system   coredns   2/2     2            2           18m

Display services from all namespaces

kubectl get services --all-namespaces
NAMESPACE     NAME         TYPE        CLUSTER-IP   EXTERNAL-IP   PORT(S)                  AGE
default       kubernetes   ClusterIP   10.96.0.1    <none>        443/TCP                  20m
kube-system   kube-dns     ClusterIP   10.96.0.10   <none>        53/UDP,53/TCP,9153/TCP   20m
